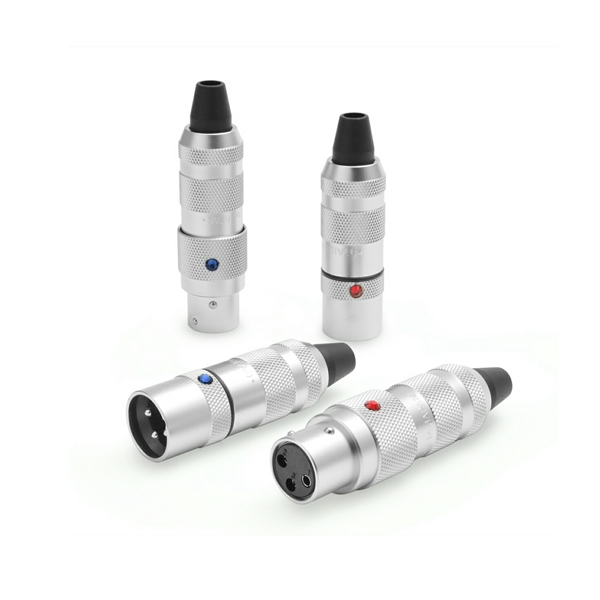

These high quality XLR plugs feature an entirely new ball bearing locking system features innovative one-touch push-pull function delivering smooth and absolute plug connection. The contact (earth) pin of this model is 3mm longer than other the pins allowing for faster contacts to prevent the POP noise at the moment of connection, and the bladed cable clump system makes it is possible to connect chassis ground and stabilize cable simultaneously.

The FOCUS 1 is designed and engineered with precision. The contact pins are made from phosphor bronze bar which are shaped by CNC machining. After careful machine barreling, silver (inner) and rhodium (outer) are directly plated on them. Then, these pins are molded into highly rigid 30% glass filled PBT which insures high-speed vibration attenuation. The body and housing are also processed by CNC machining, and have a higher density and higher shielding performance compared to an existing lost-wax processed body. The design of FOCUS 1 is inspired by an appearance of lens on a camera and projects subtle and exquisite image.

Material Contact Pin is made of deoxidized Phosphor Bronze
Insert Resin PBT 30%GF
Housing Shell made of Brass (RHoS compliant )
Cable Clump made of Brass (RHoS compliant )
Contact Pin made of Silver plating(1.5μ)+ Rhodium plating (0.3u)
Surface finishing Cable Clump made of Nickel plating
Housing shell made of Hard chrome plating
Cable connection method Soldering
Install cable O.D 6.0mm ~ 12.0mm (without cable bush)
Packing 4 pieces in a box (2 males, 2 females)
