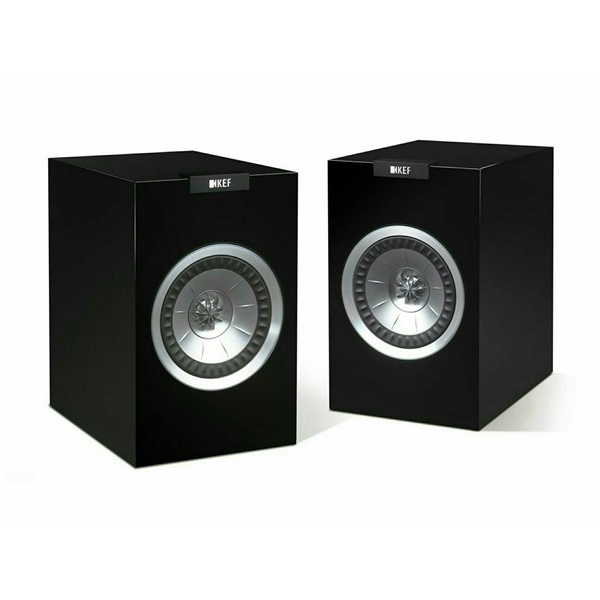

The KEF R100 is a masterpiece in miniaturisation. Fast, clean and agile, with a low-end performance you would expect from a speaker double its size or with a dedicated LF driver, the R100 has a brilliantly designed full range Uni-Q driver array that makes the smallest R Series bookshelf speaker an astonishing performer.
Model R100
Design Two-way bass reflex
Drive Units Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
LF/MF: 130mm (5.25in.) aluminium
Frequency range (-6dB) 49Hz - 45kHz
Frequency response (±3dB) 56Hz - 28kHz
Crossover frequency 2.5kHz
Amplifier requirements 25 - 100 W
Sensitivity (2.83V/1m) 86dB
Harmonic distortion
2nd & 3rd harmonics (90dB, 1m) <0.4% 150Hz-20kHz
Maximum output 107dB
Nominal impedance 8Ω (min. 3.2Ω)
Weight 6.6kg (14.5lbs.)
Dimension (H x W x D)
(with grille and terminal) 280 x 180 x 289 mm (11 x 7.1 x 11.4 in.)
