JPS Labs ALUMINATA REFERENCE

- Quad 15 AWG/1.65 mm2 Alumiloy? solid core conductors (equivalent cable conductor size 12 AWG/3.31 mm2),
insulated with Kapton? dielectric
- With a 2.0 volt line level output @ 20 KHz (preamplifier with 100 ohm output Z at full volume into a 50k ohm input),
a 1.0 meter cable only will drop 0.0000006 volts (0.6 uV)
- Particle Aluminum Shield (PAS) is approx. 0.3"/7.5 mm thick and effectively shields and absorbs environmental
and component noise - In our humble opinion, there is no better shield available on any cable on planet Earth.
- Quad anti-resonant design eliminates internal microphonics, and prevents external resonances from traveling
component to component

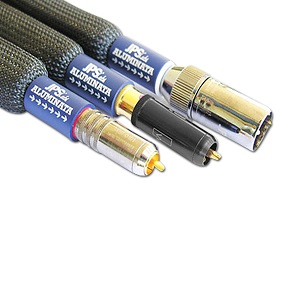

- WBT premium RCA connectors with gold plated split pin design and gold plated leaf locking ground, or,
PS Labs premium XLR connector with gold plated pins and dark metallic shell, for complete shielding end to end
- Cable made and assembled in the USA by a highly skilled master technician
- Overall weight is 2 lbs/1 kg per 1.0 meter cable- Cable is flexible and easy to connect
