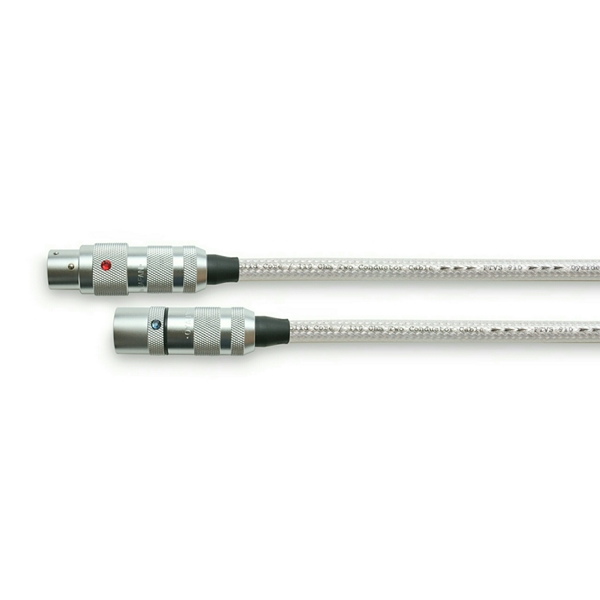

OYAIDE Elec AR-910

To use the microphone cable microphone use, reason.
Oyaide AR-910 is by overwhelming perfection with 2-core silver wire conductor core already have gotten tremendous support from Audio XLR Cable.
And it not only high-end audio, stayed on in the eyes of leading engineers who were active in the world.
They just like Mike or mic AR-910 situations and selection, has built a sound. Its characteristics to match high-quality microphone and originality's exactly what hardware is there leap forward to サウンドクオリ the cable to go beyond.
From oyaide brand spun off cable AR-910 is a gem of gems can be used as a powerful recording tool.

AR-910 generates overwhelming expressiveness by oyaide whole body's flagship model, the best materials and various processes.
Center conductor features sterling silver conductor metal in the highest electrical conductivity, excellent electrical characteristics. Placed in cable conductor size 1.0 mm 5 N sterling silver wire boasts overwhelming electrical characteristics is consideration in the Crystal structure, rather than just pure advanced refining and fine line and the stress is no longer aligned crystallization of the conductor.
Insulation features lowest dielectric insulator while PFA established further to realize low-dielectric constant forms PE packed, improves the transmission characteristics.
The shield to demonstrate against the Sparks, noise shielding to protect the wide band noise, along with 2 employ layer hybrid shielding.
And is set to 110 Ohm impedance, this analog transmission, not to mention in the digital signal （ AES/EBU ） performance suitable.　
XLR Plug is "FOCUS 1" includes ideas to the originality of elaborate themes and hold a solid ワンタッチプッシュプル functions and precision machining of ball-bearing rock.
To achieve high resolution contact PIN is phosphorus in bronze silver + rhodium-plated alms, adopted rigid zinc chromate plated brass body. And one by one cut out of solid materials by any material also advanced CNC machining and boasts outstanding accuracy.

AR-910M 3.0 m product features
Cable conductor bit 1.0 mm 5N（99.9995％ ） sterling silver
Conductor: high-purity oxygen-free copper （ 0.18 mm x 33)
Insulator / packed: fluorine resin and form polyethylene
Shield: conductivity PE / copper foil + silver plated copper (ed. set rate of 90% or more)　
Casing: UV カットポリ polyurethane r
Characteristic impedance: 110 Ω
Plug: oyaide FOCUS 1 （ 3pin XLR female-XLR 3pin male ）
