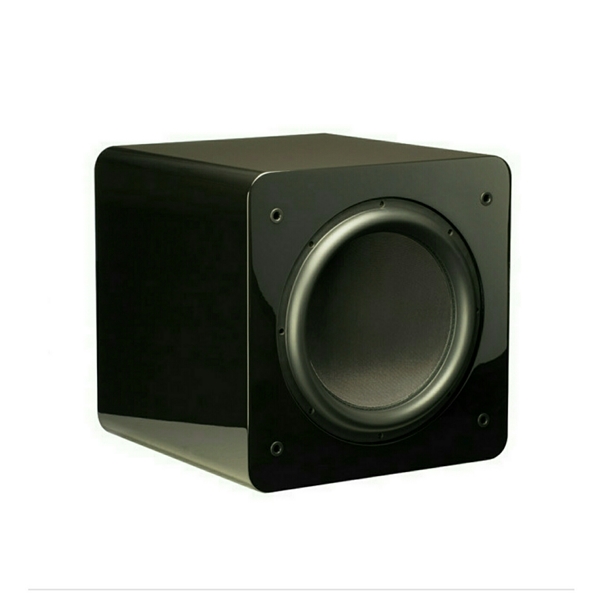

Subwoofer Specs:
Cabinet Dimensions: 17.4" (H) x 17.4" (W) x 17.4"(D)
Overall Dimensions: 17.9" (H) x 17.4" (W) x 20.4"(D) (includes feet, grille, amplifier)
Weight (unboxed): 92 pounds
Shipped Dimensions: 23" (H) x 23" (W) x 27"(D)
Weight: 105 pounds
Rigid and braced MDF cabinet
Piano gloss black and real black oak veneer finish options
Front-firing driver
Protective non-resonant steel mesh grille
Detachable power cord.
Driver Specs:
SVS 13.5” high-performance Ultra driver optimized for sealed applications
SVS custom-tooled die-cast aluminum basket
Flat-wire, 3” diameter, high-power, high-temp, 8-layer, aluminum voice coil - unique to SB13-Ultra
Polyimide impregnated fiberglass former/bobbin
Dual 9", composite layered, linear roll, extreme excursion spiders
Integrated tinsel leads
Nickel-plated high-tension spring terminals
Proprietary injection molded gasket and parabolic SBR extreme-excursion surround
Composite pulp/fiberglass press layered cone with stitched surround
Low carbon 1008 steel components, electrophoresis black plating
FEA-optimized overhung motor structure with custom gap extension plate enhances force/displacement symmetry, lower distortion and increases linear stroke
Copper shorting sleeve reduces gap induction and distortion, and enhances thermal conductivity
Dual Genox 8H/Y-35 high grade ferrite magnets
Oversized pole vent for greater cooling and low noise
Amp Specs:
STA-1000D Sledge with 1000 watts RMS continuous power (3600 watts peak dynamic power)
High efficiency cool-running Class D switching topology
Detachable power cord with main power switch and ceramic fuse
RoHS compliant, lead-free construction and world-wide safety certifications
Auto-On / On switch with "green" standby mode
Stereo line-level RCA and balanced (XLR) I/O connections
Normal and Hi input voltage switch
Customized EQ and DSP limiter settings specifically for the SB13-Ultra
Fully adjustable (frequency and slope) phase-correct speaker/sub digital crossover
Intelligent Feature Control (IFC) with bright LCD display
Two (2) digital PEQs with adjustable frequency, cut/boost, and Q values
Room gain compensation control with adjustable frequency and slope
Adjustable digital delay on main speaker line-level outputs to time-align the speakers and subs
Input impedance - 24 kΩ (unbalanced RCA) / 22 kΩ (balanced XLR)
