Reproducing most of the soundtrack narrative, the centre speaker is by far the most important in any home theatre surround sound system, and the Q200c and Q600c are engineered accordingly.
With a new generation 130mm (5.25in.) and 165mm (6.5in.) Uni-Q driver array respectively, flanked by a low distortion bass unit and an ABR of the same size, they combine raw power with the subtlety to convey moments of great delicacy.
What you notice is how convincingly the larger new metal dome tweeter captures the emotional range of the human voice – mood and character shine through with real clarity.
Your involvement in the action is noticeably enhanced by the addition of the Q800ds dipole to convey the left and right rear channels. With the two 130mm (5.25in.) Uni-Q arrays on each speaker playing out of phase, ambient 3-D effects are completely diffused throughout the listening area to create an uncanny illusion of actually being there, whether that’s deep in the rainforest, in a concert arena or driving along a gritty urban back street.
The final ingredient of your new Q system is of course the seductive Q400b subwoofer. A closed box design housing a 250mm (10in.) woofer driven by a 200W on-board Class-D amplifier, this discreet cube creates spectacular bass imagery – eloquent, musical and addictively physical. Anchoring the whole sound performance in an all-embracing sensation of immediacy, it completes the acoustic picture.

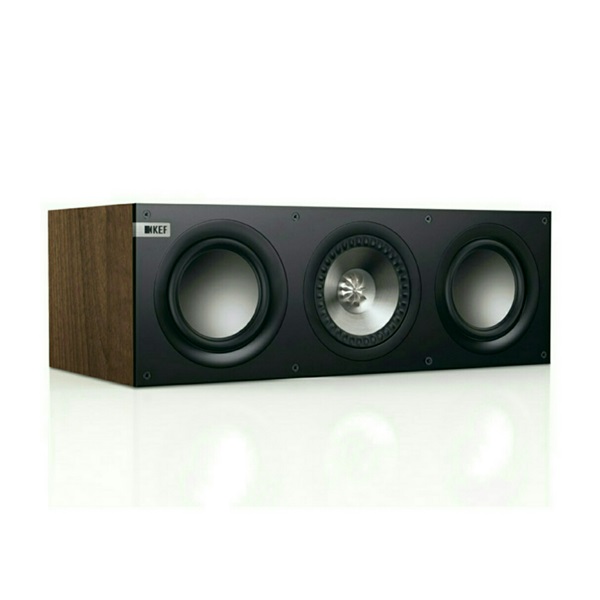

Model Q200c
Design Three-way bass reflex
Drive Units 130mm (5.25in.) aluminium Uni-Q 25mm (1in.) vented aluminium dome HF 130mm (5.25in.) aluminium LF 130mm (5.25in.) aluminium ABR
Frequency response ±3dB 50Hz - 40kHz
Crossover Frequency 500Hz, 2.8kHz
Amplifier requirements 15 - 130W
Sensitivity (2.83V/1m) 85dB
Maximum output (SPL) 108dB
Impedance 8Ω
Weight 11.0kg (24.3lbs)
Dimensions
(H x W x D) 180 x 525 x 260 mm (7.1 x 20.7 x 10.2 in.)
