ZAPPITI ONE SE 4K HDR

Technical Specifications

● Chipset: Realtek RTD1295.
● CPU: ARM® Cortex® CA53 x4 (Quad Core).
● GPU: Mali™-T820 MP3 (3 Core) (equivalent to an Octa-core Mali 450) - DirectX 11.1, OpenGLES 3.1, OpenGL 1.2, FP, ASTC, Renderscript. 4x Multi-Sampling Anti-Aliasing (MSAA).
● Operating System: 64-Bit.
● DSP: Video and Audio DSP with hardware acceleration. Native hardware 10-bit YUV support. Hardware performance optimizations for Zappiti UI.
● Cache: 1 MB L2.
● RAM: 2 GB DDR4.
● NAN eMMC: 16 GB (5.0).

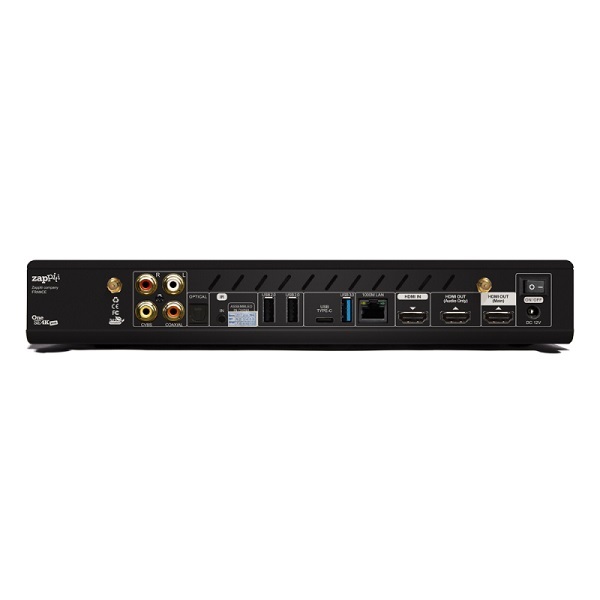

● Connectors: HDMI Audio Video 2.0a (HDCP 2.2, CEC, Deep Color, 12-bit, xvYCC, MHL 3.0), HDMI Audio Only 1.4a, 3x USB 2.0, 1x USB 3.0, 1x USB Type-C, gold platted CVBS video analog output (both analog and digital video outputs are active at the same time), gold platted audio analog RCA (both analog and digital video outputs are active at the same time), gold platted S/PDIF coaxial and optical audio output (Toslink), Ethernet Gigabit 10/100/1000 Gb/s, Wi-Fi 5 GHz with 2 removable antennas, IR input for IR extender, SD / MMC card reader, AC connector, AC button On/Off (at the back), LED display on front panel controlled with RC.
● HDD Rack Option with Hot Swap Function: Easily and quickly insert and exchange internal 3.5'' SATA HDDs.
● Media sources: External HDD (USB), USB devices (USB flash drive, USB card reader, etc), built-in SD card reader (SD/SDHC/MMC), PC and NAS in local network (SMB, UPnP, HTTP), other Internet and local network media sources. External multi-bay USB storage enclosures supported.
● Easy and fast file transfers: up to 90 MB/s via SATA, 70 MB/s via USB 3.0 / 115 MB/s via Ethernet.
● Internet navigator: Connect a computer mouse and keyboard to browse Internet as on a computer.
● DLNA: Full support of DLNA standard (1.5 or 2.0) / MiniDLNA Server.
● SMB Server: Zappiti Share, OpenWRT
● FTP Server : OpenWRT.
● Video codecs: HEVC, H.265, x265 (up to Main10 Level 6.1 High 60p in 4K), MVC, AVC, MPEG-2, MPEG-4, VC-1, H.264/x.264 (up to 60p in Full HD and 24p/20 Mbps in 4K), FLV, AVS, XVID, DIVX (from version 4), Sorenson Spark L70, VP9 HW (up to 4K 60p) ; ultra high bitrate support (up to 400 Mbit/s in HEVC 4K).
● Video file formats: UHD ISO, 3D BD ISO, BD ISO, BDMV, MKV, MKV 3D, MK3D, MPEG-TS, MPEG-PS, MPEG, MPE, MPG, TS, TP, M2TS, VOB, AVI, MOV, MP4, QT, WebM, DVD-ISO, VIDEO_TS, RMVB, RM, DAT, VOB, 3GP, FLV, DAT, AVCHD 2.0 (AVCHD 3D, AVHD Progressive).
● Video output flexibility: Output video in any resolution and format from SD to 1080p, Ultra HD (3840x2160) and 4K (4096x2160). Up to 4K 60p. Display your movies in true 24p (23,976 Hz ouput).
● Audio codecs: AC3, DTS MPEG, MP3, ALAC, APE, M4A, AIFF, WAV, WMA, VSELP, FLAC, AAC, AAC-LC, HEAAC, HE-AAC v2, AMR-NB, OGG (Ogg/Vorbis), RA_COOK, LPCM, PCM, ADPCM, FLA, MQA; lossless and audiophiles formats support (up to 32-bit).
● Zappiti Music: Album cover thumbnail support (internal and folder.jpg), folder playback (including sub folders), random (shuffle), repeat playlist, repeat title, favorites and excludes, playlists creation and management. Control the music playback using Zappiti Music Control app for smartphone or tablet (Android/iOS) without the need of TV. Click here for more info... Musical slideshow for live concerts or display the internal pages of album booklet or the back cover (via Zappiti Explorer).
● Multichannel home cinema audio: Bitstream, downmix stereo (DTS, DTS-HD MA, DTS-HD HRA, DTS:X, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos).
● Force SD Audio: In SPDIF output, multichanel HD audio formats are donwmixed in Dolby Digital or DTS (if Core) or stereo (if not core). Note: Only HDMI can support HD audio formats such as Dolby TrueHD or DTS-HD.
● Subtitle formats: SRT (Subrip / external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (sous-station alpha / MKV, external), VobSub (MP4, MKV, SUB/IDX external), SMI (Sami), IDX, PGS (UHD ISO, BD ISO, BDMV, M2TS, MKV), DVBSUB (DVB-T, DVB-S, DVB-C).
● Subtitle options: Download subtitle option. 3D subtitles support with depth settings. Multi-coding. Multiple external subtitles. Default subtitle setup.
● 3D Hardware acceleration: OpenGL.
● Photo file formats: JPEG (hardware decoding), PNG, BMP and GIF with resolution up to 8192x8192 pixels. Musical slideshow option with dynamic transition effects.
● Supported formatting: FAT16/FAT32 (read-write), EXT2/EXT3 (read-write), NTFS (read-write), MAC OS / HFS+ journaled (read-write), ExFAT (read-write).
● Ethernet: 10/100/1000 Mb/s.
● Wi-Fi: 8IEEE 802.11a/b/g/n, 802.11AC, 2.4 GHz / 4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band). Dual band. Dual external antenna (gold platted and removable).
● Bluetooth 4.0: BT4.0
● Android 6.0: Install and enjoy additional apps via GooglePlay. Warning! Some Android apps are not suitable for use with the remote control. In this case, use a connected computer mouse or an AirMouse (not supplied).
● Mirroring audio / photo / video : Mirroring your smartphone or tablet device's display and sound on your TV, showing off photos from a recent trip, or listening your favorite songs.
● Network playback: Special optimisation of the network, guaranteeing better performances of the local network playback no matter which type of media thanks to SMB protocol (HEVC UHD files included) via Gigabit Ethernet or Ethernet 10/100.
