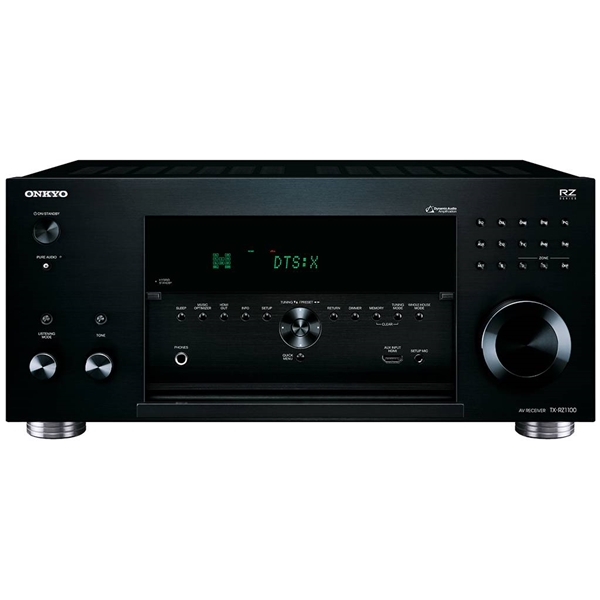

ONKYO TX-RZ1100

-HIGHLIGHTS

200 W per Channel
THX® Select2™ Plus Certification
Native DTS:X™ and Dolby Atmos® to 5.2.4 Channels
DTS Neural:X™ Upmixing for Legacy Formats
Google Cast, AirPlay®, Wi-Fi®, and Bluetooth® App Streaming
AccuEQ Room Calibration with AccuReflex Technology
FireConnect™ Multi-Room Wireless Technology
HDMI® 8 In (1 Front), Main Out, Zone 2 Out (HDCP 2.2/HDR*1)

-ADVANCED FEATURES

THX® Select2™ Plus Theater-Reference Audio Performance
5.2.4-channel DTS:X™ and Dolby Atmos® Object-based Audio Decoding
DTS Neural:X™ Upmixes Standard 5.1 and 7.1 formats to 3D Sound
HDMI Supports 4K/60 Hz, High Dynamic Range, 4:4:4 Color Space, and HDCP 2.2-protected Video*1
Zone 2 HDMI Output Distributes 4K/60 Hz Video to a Second Display
Google Cast*2, AirPlay, Wi-Fi®, Bluetooth*3, TuneIn Radio, Pandora®, Spotify, TIDAL*2, and Deezer*2 for App-based Audio Streaming*4
Network/USB Audio (DSD 11.2 MHz [Stereo], 192/24 PCM, Dolby® TrueHD, FLAC, WAV, ALAC, AAC, MP3, WMA)
Powered Zone 2 and Powered Zone 3 Outputs for Multi-room Analog and Digital (HDMI/Network/OPT/COAX) Audio with Independent Volume/Tone Controls
Whole House Mode Function
AccuEQ Calibration with AccuReflex for Seamless Object-based, Multichannel, and Stereo Sound (Setup Mic Included)
FireConnect™*2 Wireless Multi-room Digital/Analog Audio Distribution to Compatible Speakers (Sold Separately)
11.2 Multichannel Pre-Outs for 7.2.4-channel Object-based Audio (Separate Stereo Amp Required)
Remote App for iPhone/iPod touch*5 and Android™ Devices*6
*1 6G Video/HDCP 2.2 supported on HDMI inputs 1–5, Main Out, and Zone 2 Out.
*2 Services enabled via firmware update. Details TBA.
*3 Bluetooth specification Version 4.1 (compatible profile: A2DP v1.2, AVRCP v1.3) also supporting Advanced Music Optimizer.
*4 Availability of services depends on region. Some services may require a paid subscription and firmware update. Availability of third-party services advertised here is accurate at the time of publication, but may be subject to change without notice.
*5 Compatible with iPod touch (5th generation or later) and iPhone 4GS or later.
*6 Requires Android 4.0.3 or later.

-AMPLIFIER FEATURES

Onkyo High-Current Digital Amplification for Smooth Low-Distortion Power
Customized High-Output Transformer, Custom Audio-Grade Capacitors, Separate Transformer for Standby
Separated Digital and Analog Circuitry to Reduce Interference
Extruded Metal Heat Sink with Polycarbonate Cooling Fan
Optimum Gain Volume Circuitry
VLSC™ (Vector Linear Shaping Circuitry) Noise-free Signal Processing for All Channels
PLL (Phase Locked Loop) Jitter-Cleaning Circuitry for S/PDIF Audio
PROCESSING FEATURES
HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, Dolby® Digital Plus, Dolby® Surround, DTS:X™, DTS-HD Master Audio™, DTS 96/24, DTS-ES, DTS Express, DTS Neural:X™, THX® Cinema/Music/Game, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Dolby Atmos®, DTS:X™, Dolby® TrueHD, and DTS-HD Master Audio™ Decoding
Separate 384 kHz/32-bit AK4490 Stereo DAC (Front L/R), 2 x 768 kHz/32-bit AK4458 Multichannel DACs (Surround Channels)
Discrete 192 kHz/24-bit AK4388 Stereo DACs (x2) for Zone 2 and Zone 3
Multiple 32-bit Digital Signal Processing Engines
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Theater-Dimensional Virtual Surround Function
Direct Mode and Pure Audio Mode

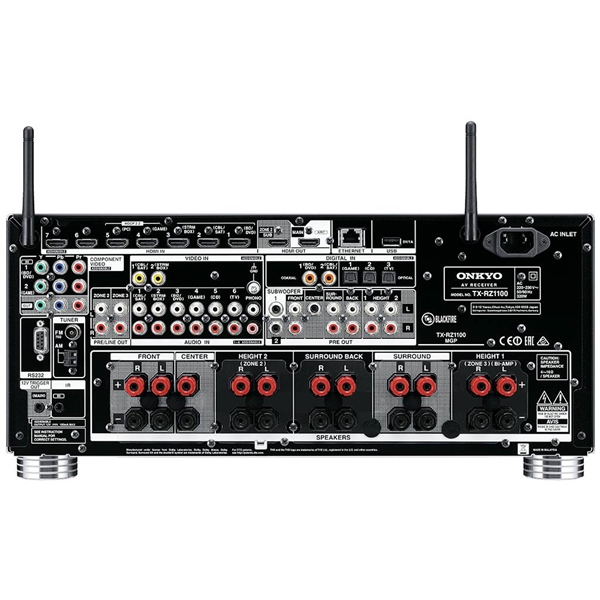

-CONNECTION FEATURES

8 HDMI Inputs (1 Front/7 Rear), Main, and Zone 2 Outputs
Mass Storage Class USB Memory Playback Capability (Rear Input)
11.2 Multichannel Pre-Outs and Zone 2/3 Pre-/Line Outs
Zone 2 and Zone 3 Powered Speaker Outputs/Bi-Amping Outputs
Component Video Switching (2 Inputs and 1 Output) and 2 Composite Video Inputs
5 Digital Audio Inputs (3 Optical and 2 Coaxial) and 7 Analog Audio Inputs
Phono Input (MM) for Turntable Connection
Dual Subwoofer Pre-Outs
12 V Trigger Out (Assignable) with IR Input; Supports IP and RS232
6.3 mm Headphone Input

-OTHER FEATURES

Tone Controls (Bass/Treble) ±10 dB for All Channels
Independent Crossover Adjustment for All Channels (40 ⁄ 50 ⁄ 60 ⁄ 70 ⁄ 80 ⁄ 90 ⁄ 100 ⁄ 120 ⁄ 150 ⁄ 180 ⁄ 200 Hz)
A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
New Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Setup Function
Hybrid Standby Function with HDMI Passthrough
40 FM/AM and 40 Internet Radio Station Presets
RIHD (Remote Interactive Over HDMI) for System Control
Aluminum Front Panel and Volume Control Knob
Simple Remote Control

-GENERAL SPECIFICATIONS

Power Output: 200 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC); 340 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven, JEITA)
Dimensions (W x H x D): 435 x 201 x 453 mm
Weight: 19.7 kg
