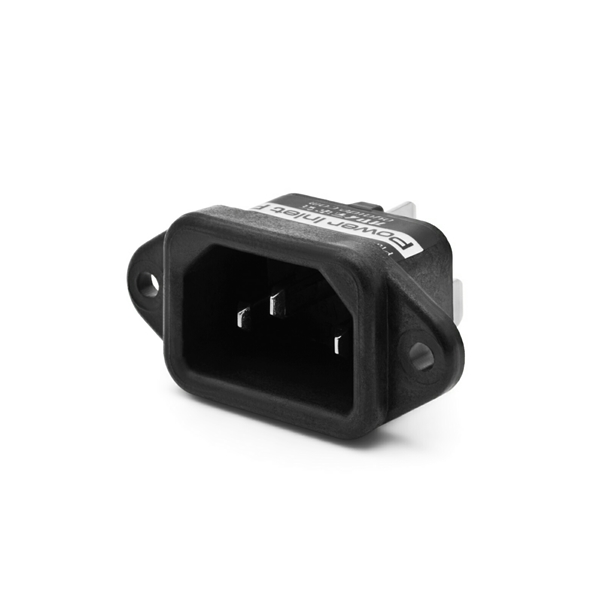

Oyaide Power Inlet R
หมวดหมู่สินค้า: AC Power Connetor
รหัส : OYA175
ราคา 8xx บาท ราคาพิเศษ สอบถามเพิ่มเติม

20 พฤศจิกายน 2561

ผู้ชม 1681 ผู้ชม

Power Inret R is the original IEC 320 power inlet which is widely used for many types of audio equipment. We pursued to produce the best Inlet on the market. Because it is very simply composed by just a housing and blades, the quality is totally depends on material and method of production.

The housing is made by 30% glass filler PBT which has the quality to durability, vibration absorption, and heat resistance. And because of the wider cable attaching portion, it makes soldering work easier compared to regular power inlet.
The blade is trimmed down from a board made by phosphor bronze. And, after hand polished, it is plated by platinum and palladium plating which is the best combination we thought after repeated tests with prototypes.

Power Inret R contributes truly lossless power transmission. You would be so surprised by this small piece of components.

Model Power Inret R
Material of blade Phosphor bronze
Plating Platinum + Palladium
Faston Terminals JIS F6.35(connedted to inner side of the blade)
Body 30% Glass filled PBT
Weight 13.5g
Volt/Amp 125V・15A (CSA) 250V・10A (VDE,SEMKO,KEMA,etc)
Withstand Voltage AC 2,000V/1min
Heat resistance 94V-0 E45034
Appropriate screw:3mm x 2
Dimension of a mounting hole 20mm x 27.5mm R4
Applicable standard IEC320(EN60320)/EN60320/CSA22.2 No.182.3M/JIS
