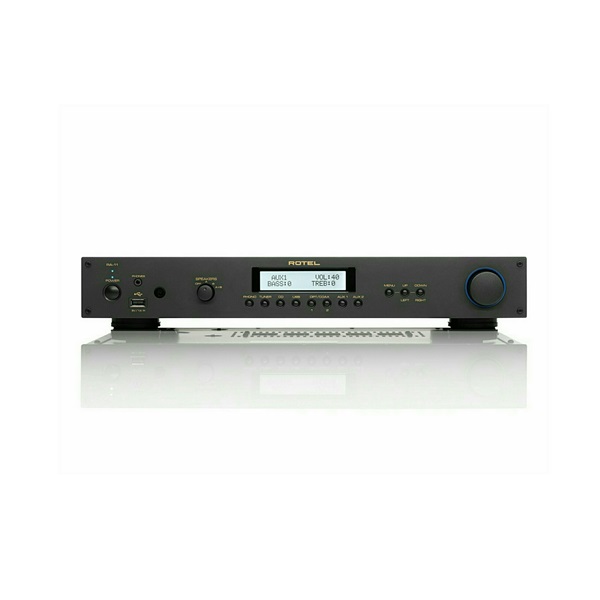

Rotel RA-11
Rotel RA-11
หมวดหมู่สินค้า: Integrated Amp
รหัส : ROT055
ราคา 2x,xxx บาท ราคาพิเศษ สอบถามเพิ่มเติม

13 มกราคม 2559

ผู้ชม 2153 ผู้ชม

The RA-11 carries a similar set of features to the RA-12 but is slightly less powerful at 40 Watts per channel and is constructed in a slimline enclosure. Just like the RA-12, every critical signal chain component is selected to ensure that music from the RA-11 is delivered with as much detail, dynamics, clarity and emotion as possible. The RA-11 incorporates the same high-end Wolfson WM8740 24 bit/192kHz DAC chip as the RA-12 and the same complement of five conventional analogue inputs, four S/PDIF digital inputs, and an Apple authorised USB input. The RA-11 can be controlled through either its front panel buttons, via a remote handset, or an RT-12 and the Rotel Remote app for iPhone and iPad.

Model RA-11
Continuous Power Output 40Watts/ch (20-20kHz, < 0.03%, 8 Ω)
Total Harmonic Distortion (20Hz-20kHz) < 0.03% at rated power
Intermodulation Distortion (60Hz:7kHz, 4:1) < 0.03% at rated power
Frequency Response Phono input 20Hz-15kHz, ±0.3dB
Line Level Inputs 10Hz-100kHz, ±1dB
Input Sensitivity / Impedance Phono input 2.5mV / 47 k Ω
Line Level Inputs 150mV / 24 k Ω
Input Overload Phono input 180mV
Line Level Inputs 5V
Preamp Output / Impedance 1V / 470 Ω
Tone Controls - Bass / Treble ±4 dB at 100Hz / 10kHz
Signal to Noise Ratio (IHF “A” weighted) Phono input 80dB
Line Level Inputs 100dB
Digital Section -
Frequency Response 10Hz-95kHz ±3.0dB (MAX)
Signal to Noise Ratio (IHF “A” weighted) 100dB
Input Sensitivity/Impedance 0 dBfs/75 Ohms
Pre-out/Impedance 1.2V/470V (at -20dB)
Decodable Front USB/iPod Digital Signals AAC (m4a), WAV, MP3, WMA (up to 48K 16bit)
Coaxial/Optical PCM LPCM
File Formats Real Audio, MP3, OGG Vorbis, WAV, AIFF
and AU
General -
Power Requirements (AC) 120V, 60Hz (USA) 230V, 50Hz (Europe)
Power Consumption 220Watts
Standby Power Consumption 0.5W 0.5Watts
Dimensions (W x H x D) 430 x 72 x 342mm (17 x 2 7/8 x 13 1/2ins)
Panel Height 60mm (2 3/8 ins)
Weight (Net) 6.39kg (14lbs)
Finishes Black, Silver
