ONKYO PA-MC5501 Poweramp Multichannel ONKYO PA-MC5501 Poweramp Multichannel ONKYO PA-MC5501 Poweramp Multichannel
หมวดหมู่สินค้า: * Power Amp
รหัส : ONK410
ราคาตั้ง 149,000 บาท ราคาพิเศษ สอบถามเพิ่มเติม

05 มกราคม 2560

ผู้ชม 1206 ผู้ชม

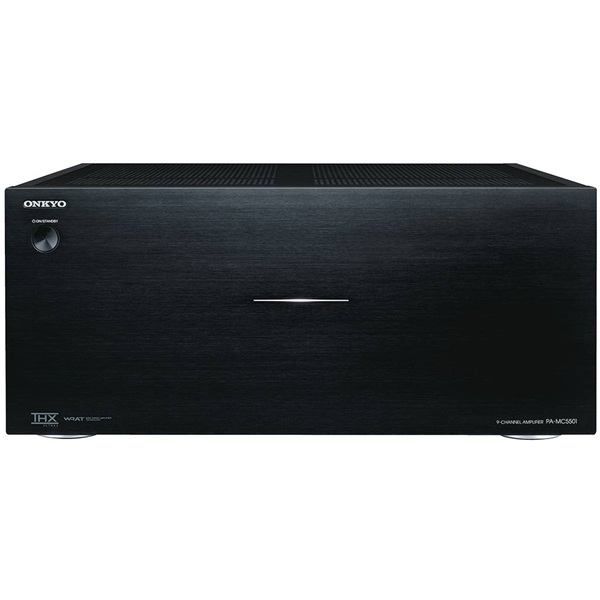

ONKYO PA-MC5501

-ADVANCED FEATURES

THX® Ultra2™ Certification
WRAT (Wide Range Amplifier Technology)
Push-Pull Amplification Design with Three-Stage Inverted Darlington Circuitry to Remove Distortion
All Discrete Output Stage Circuitry

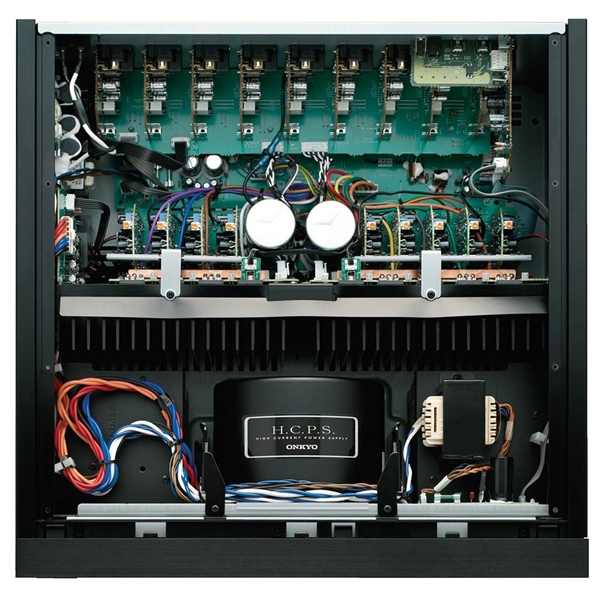

Massive Toroidal Transformer
Two Large, Customized, 22,000 μF Capacitors for Effective Power Supply
Audio-Tuned Reference Capacitors for Each Channel
Large, Custom-Designed Power Transistors to Drive High Currents
Low-Impedance, Copper Bus Plates for Perfect Ground Potential
High-Current, Low-Impedance Circuit Boards with Thick Copper Foil (70 μm)
Separate Anti-Vibration Panels
Flat, High-Rigidity, Anti-Resonant Chassis

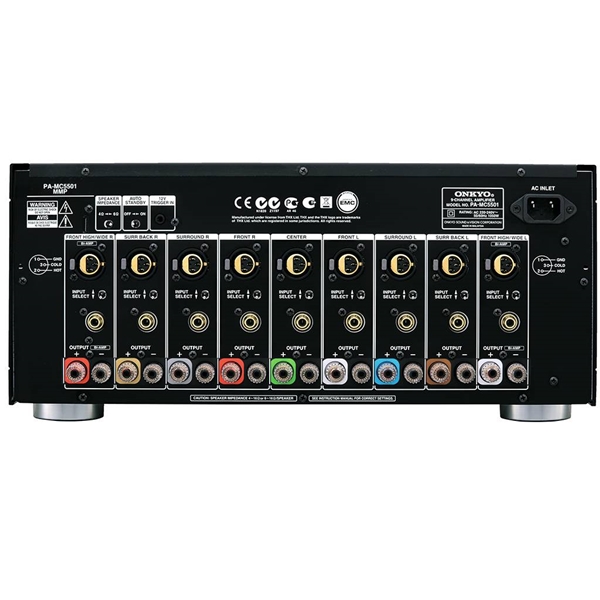

Gold-Plated XLR Inputs
Machined Solid Brass RCA Inputs
Gold-Plated, Color-Coded, Banana Plug-Compatible, Transparent Speaker Posts
Multi-Zone Capability (up to Zone 3)*
Bi-Amping Capability*
12 V Trigger Input
Auto Stand by Function
Aluminum Front Panel

-GENERAL SPECIFICATIONS

280 W/Ch at 6 Ohms, 1 kHz, 1 Channel Driven, JEITA
Frequency Response: 5 Hz–100 kHz (+1 dB, -3 dB)
S/N Ratio: 110 dB (Unbalanced, IHF-A)
WHD: 435 x 198.5 x 446.5 mm
Weight: 26.0 kg
